Base Line Heat Pump Systems - PH4Z - Superior Home Comfort

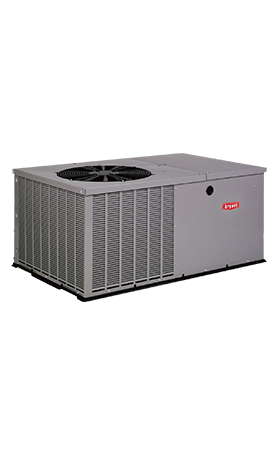

Base Line Heat Pump Systems – PH4Z

Home / Base Line Heat Pump Systems – PH4Z
Product Line Packaged Products – Base Line
System Type Heat Pumps
SEER Range 13 to 15.9 SEER
SEER Rating 14.5
HSPF Rating 8.0
Compressor Type Single-Stage
Proposition 65 Product Warnings 343824-2 Lead and Lead Compounds
  • Enjoy cool, summer comfort with 14.5 SEER and 11.5 EER efficiency
  • Transition to winter with heating efficiency of up to 8.0 HSPF
  • Compact cabinet is designed for limited space applications, including manufactured housing
  • Galvanized steel cabinet with “coil on top” design for lasting durability against the elements
  • Louvered grille protects the coil against physical damage
  • Solid cabinet base panels help prevent infiltration of dirt, debris and moisture
  • 10-year parts limited warranty upon registration1
1To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.


Energy Efficiency 14.5 SEER/11.5 EER cooling, 8.0 HSPF electric heating
Heating and Cooling Stages Single-stage operation


Quiet Levels During most common cooling operating condition: 73 dB


Filter Change Reminders With compatible control


Blower Motor High-efficiency fixed-speed

Compressor Single-stage scroll

Refrigerant Puron ® refrigerant
Optional Protection DuraCoat™ tin-plated coil protection for additional corrosion resistance
Capacity 2-5 tons


Design Narrow lot design
Construction Galvanized steel with high-tech composite (rust-free) base
Paint Baked-on urethane base coat and polyester top coat
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
